Performance

• Top Speed: Class 2/3, 28 Mph (45Km/h)
• Range: 40+miles (64km) in Class-2 throttle-only mode (pure electricity); 70+miles (113km) in Class-1 PAS (pedal assist)
• Motor: 48V  500W (Peak 1000W) Brushless Rear Hub Motor 50N.m
• Battery: 48V 20Ah Battery (Lithium 18650 Cells)
• Energy: 960Wh
• Front Suspension: Single-shoulder shock-absorbing front fork 16 inches * 4.0 * 135mm \ total height 385mm \ toothless riser length 215mm, 80mm Travel

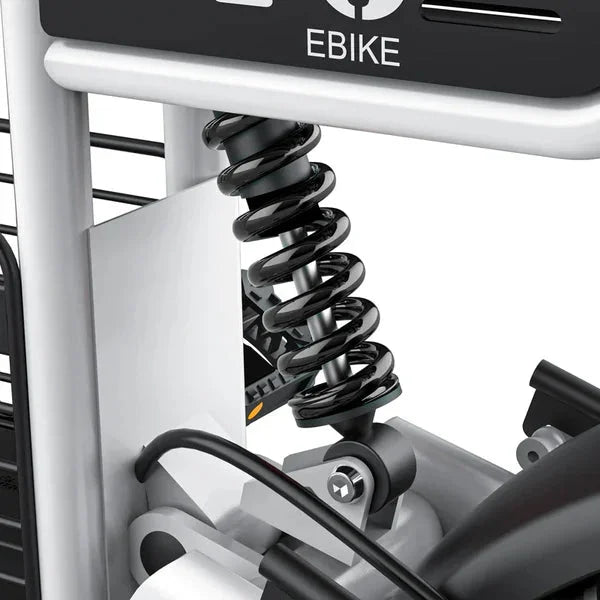

• Rear Suspension: 3000 Pounds, 170mm Travel

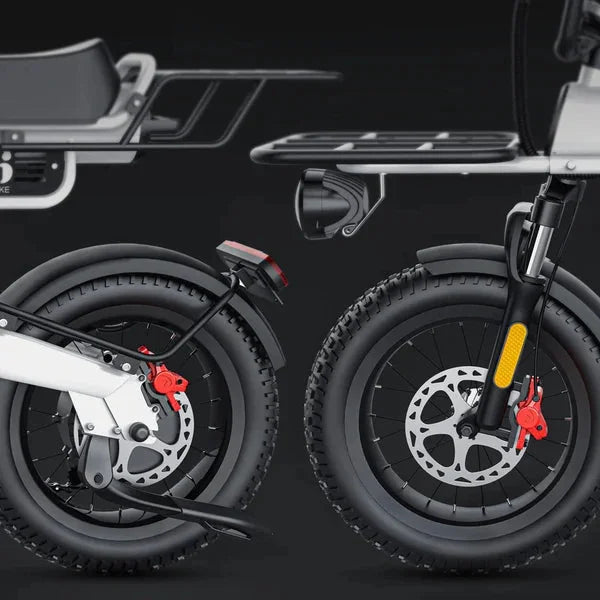

• Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
• Tires: ChaoYang All Terrain Tire 16" × 4.0" H5176 30TPI
• Throttle: Grip Twist Throttle


Electronics

• Charger: 48V3A Charger
• Charging Time: 3.5-8.0 Hours

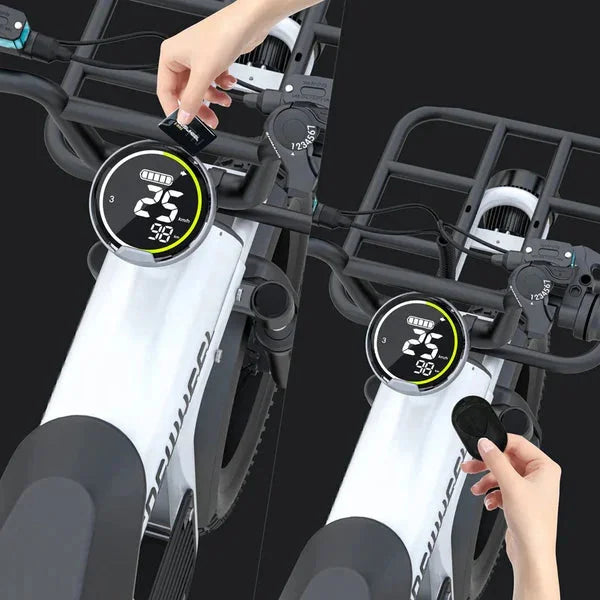

• Display: Easy Read LCD Display, Equipped with UDE remote control + 2 NFC cards
• Controller: 48V 22A

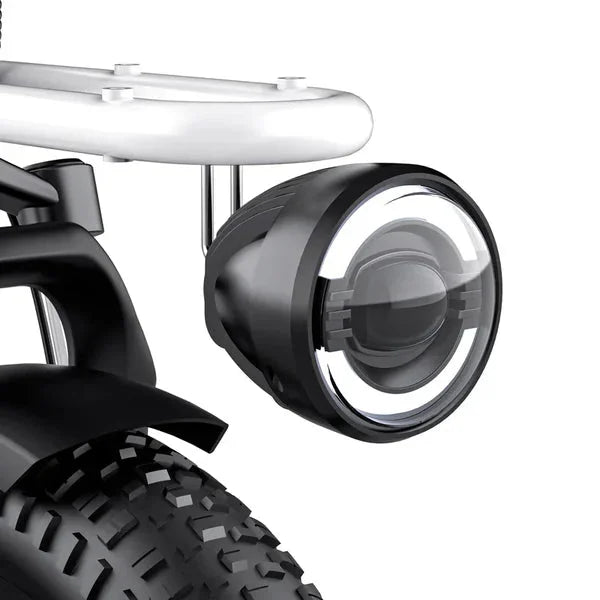

• Front Light: Round retro headlights with daytime running lights
• Rear Light: LED
• Pedal Assist: 3 Levels
• Sensors: Speed Sensor


Components

• Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
• Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2

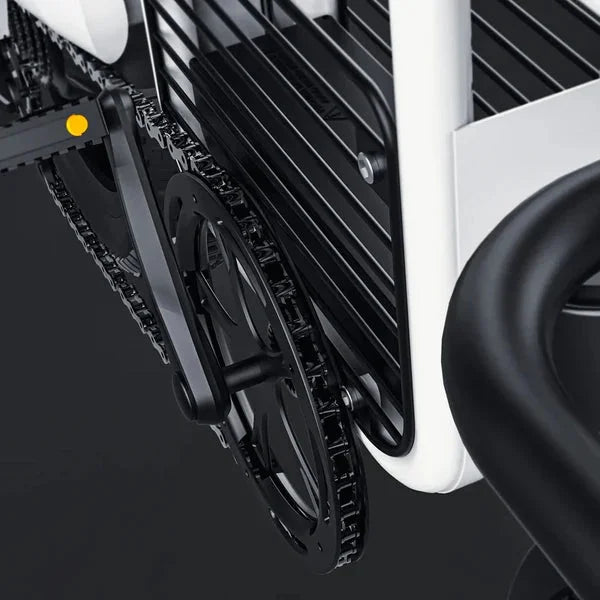

• Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate

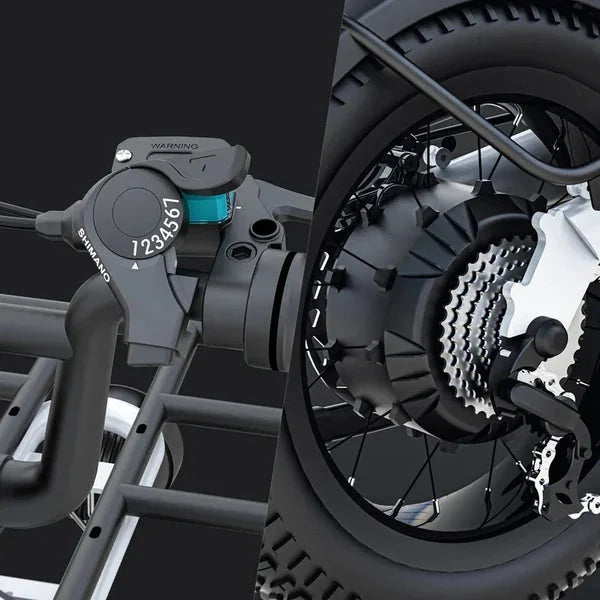

• Rear Derailleur: Shimano 7-Speed
• Chain: 7-speed Anti-rust, 1/2" * 3/32"
• Handlebars: HB-B072\25.4*L:640mm*H:180mm\17°\middle horizontal φ22.2*H:140mm\sandblasting black


Geometry

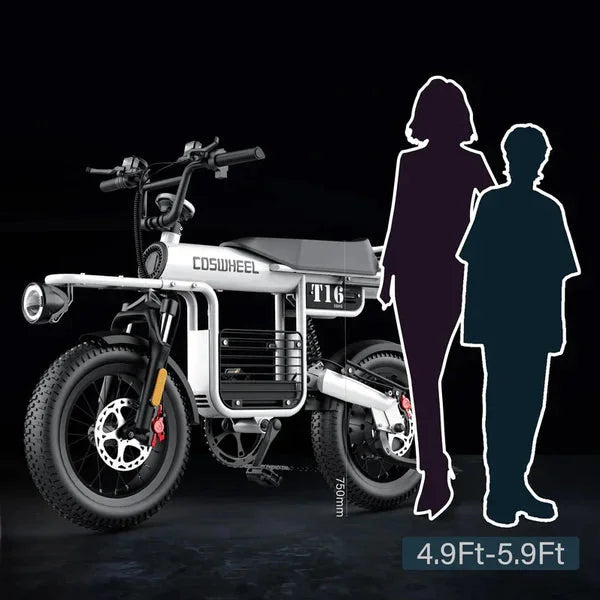

• Suitable Height: 4'11" - 5'11" (4.9ft-5.9ft)

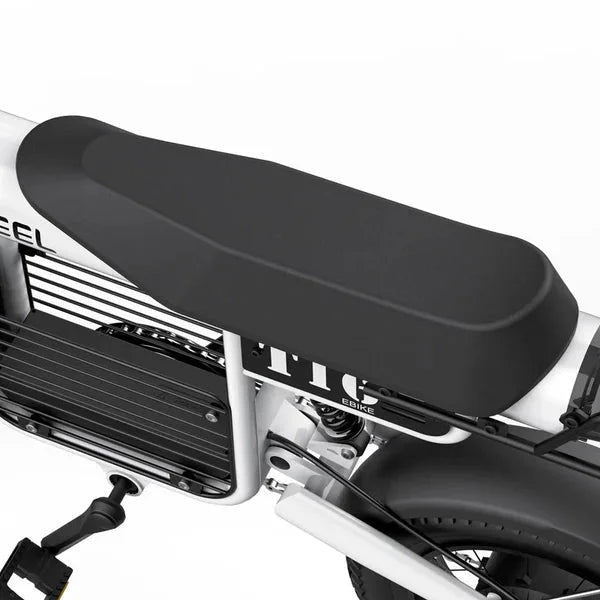

• Seat Height: 29.53" (75cm)
• Bike Height: 39.37" (100cm)
• Wheelbase: 38.58" (98cm)
• Handlebar Width: 25.59" (65cm)
• Bike Weight: ≥97lbs (with Battery) (≥44kg)
• Maximum Load: 330lbs (150kg)
• Safe Load: 265lbs (120kg)
• Overall Size: 60.24" * 25.59" *39.37" (153*65*100cm)
• Package Size: 55.91" * 12.60" * 32.28" (142*32*82cm)
